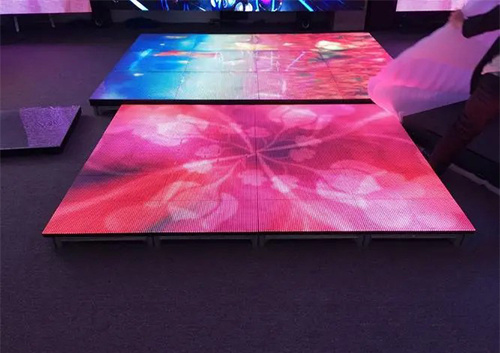

Full color LED interactive floor tile screen technology principle

2024-07-02

1. The multimedia interactive system consists of image motion capture device, data transceiver, data processor and LED tile screen.

2. Image motion capture device realizes the capture and collection of image and motion data of participants.

3. The role of the data transceiver is to realize the action capture between the data back and forth express transmission.

4. The data processor is the core part to realize the real-time interaction between participants and various kinds of effects, to analyze and process the collected image and action data, and to realize the merging process with the inherent data in the processor.
