PTF china Outdoor Fixed Display manufacturers
Product category:
Key words:
Cob LED Display
● Stable and reliable operation ● Self-contained heat dissipation,no need to install other heat dissipation equipment. ● Green energy saving China Outdoor Fixed Display manufacturers play a crucial role in the industry. They are the driving force behind the creation and supply of high-quality outdoor display solutions.
Inquiry
- Product Description
- Parameters
-
lower carbon emission,more green!
● Stable and reliable operation
● Self-contained heat dissipation,no need to install other heat dissipation equipment.
● Green energy saving

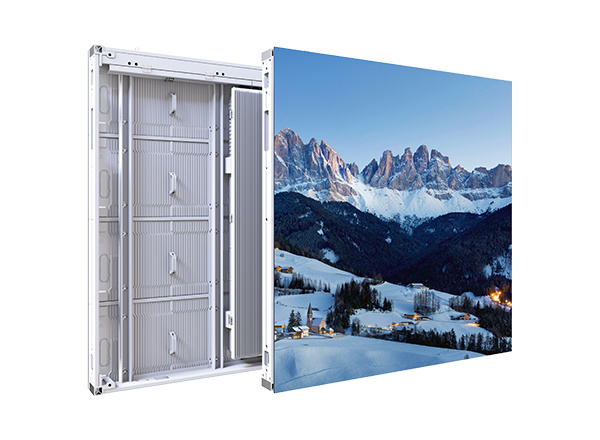

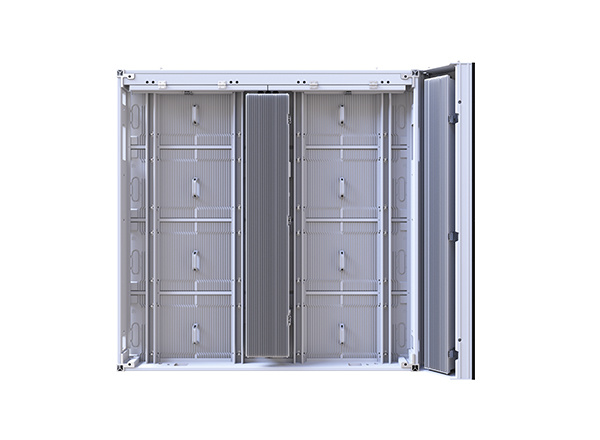

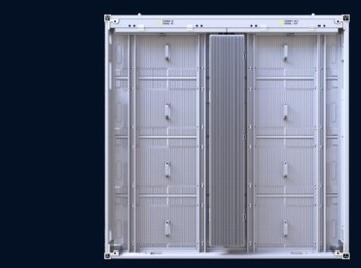

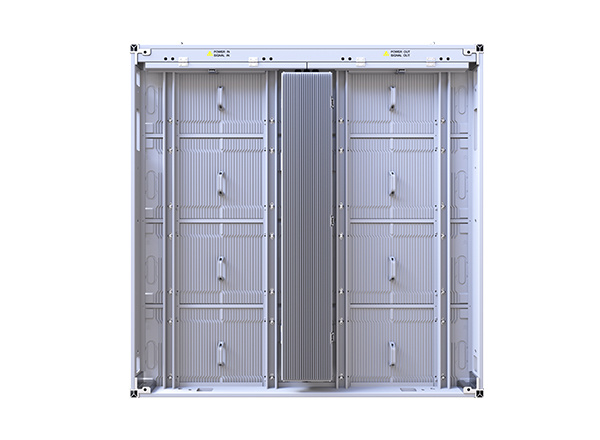

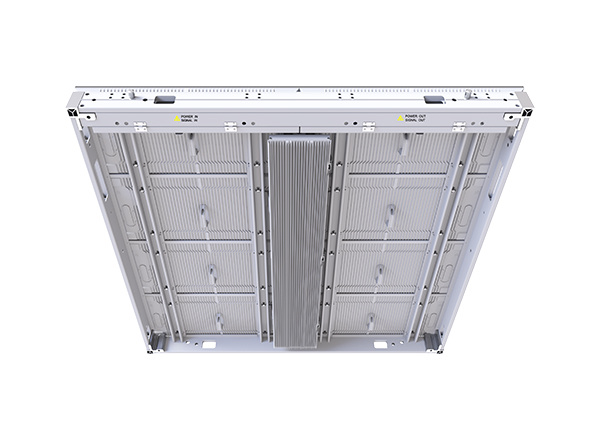

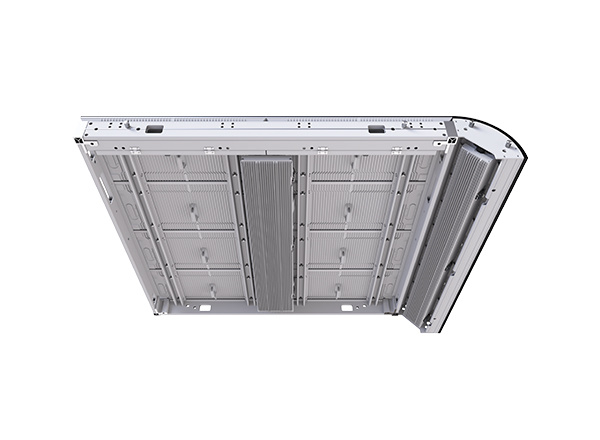

Superior structural design
● Die-casting Aluminum module and cabinet,for seamless installation and fast heat radiation.
● Both totally front and rear service,easy for installation.
● Simple design with hidden cables.

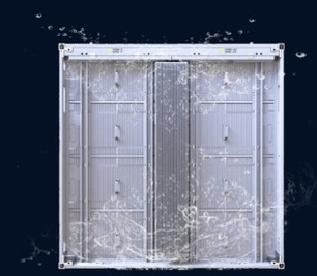

Ultra high protection
● The module adopts side waterproofing method to ensure the flatness of the module.
● The module adopts two layers of waterproofing, improving the waterproof performance of the module.
Fire rating up to 5VB,Fearless in outdoor environments. Significantly improved protection,with Ip66 waterproofing. Lightweight cabinet for quick and easy installation.

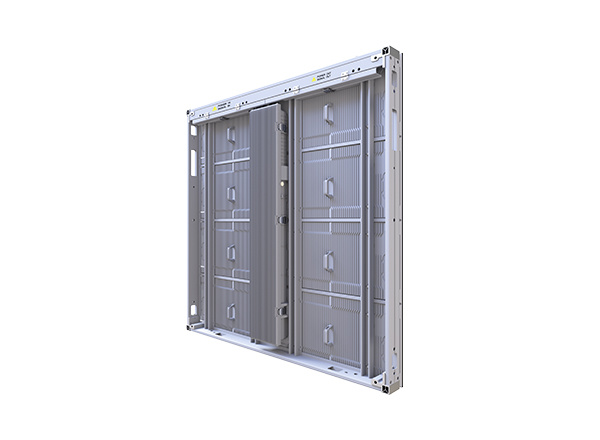

Lightweight Cabinet 27 kg/m²

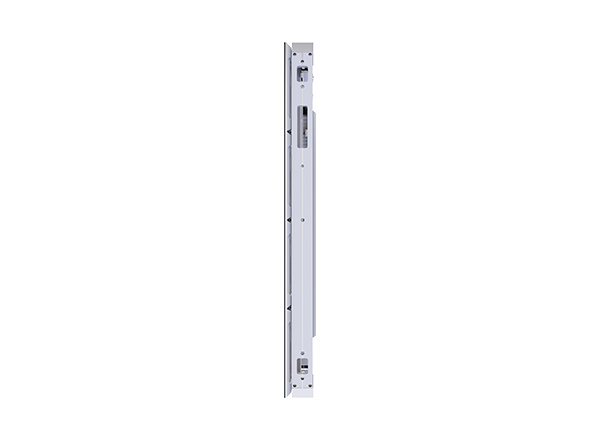

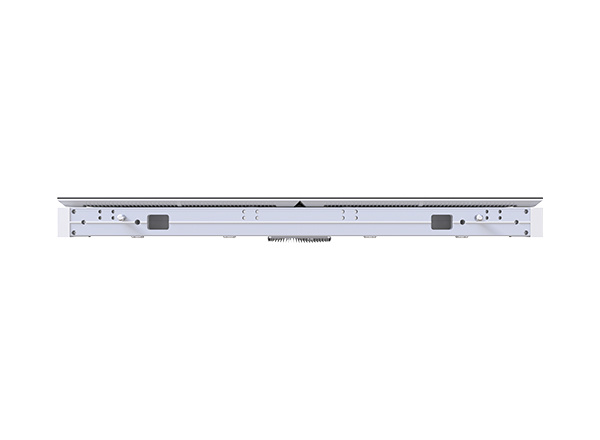

Cabinet Thiokness 81.5mm

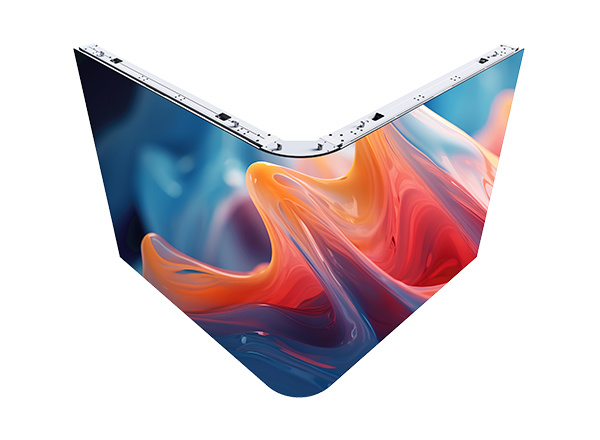

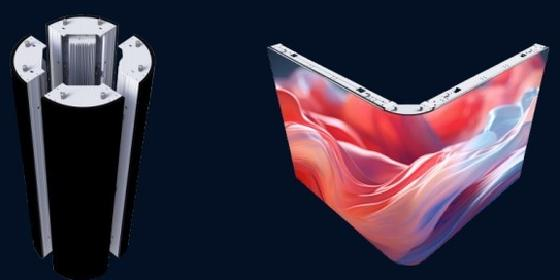

Perfect rounded corners
PTF+VR
Perfect seamless corner cabinet for naked-eye 3D solution.
China Outdoor Fixed Display manufacturers play a crucial role in the industry. They are the driving force behind the creation and supply of high-quality outdoor display solutions. These manufacturers use advanced technologies and innovative designs to produce displays that are not only visually appealing but also highly functional. They ensure the durability and reliability of the products, making them suitable for various outdoor environments. Their displays are widely used in advertising, public information dissemination, and entertainment. They help businesses and organizations promote their brands and messages effectively to a large audience. The manufacturers also focus on energy efficiency and environmental friendliness, minimizing the impact on the environment. With their expertise and dedication, they contribute to the growth and development of the outdoor display market in China, meeting the diverse needs of different sectors and enhancing the visual experience of people in public spaces.
-
Model name
PTF3.9
PTF4.8
PTF5.9
PTF6.2
PTF8.3
PTF10.4
Pixel Pitch (mm)
3.91
4.81
5.95
6.25
8.30
10.41
Pixel Density (dot/m²)
65,536
43,264
28,224
25,600
14,400
9,216
LED sealing Type
SMD1921
SMD1921
SMD 1921
SMD2727
SMD2727
SMD2727
Module Resolution(PX*PX)
128*64
104*52
84*42
80*40
60*30
48*24
Module Size(mm*mm)
500*250
500*250
500*250
500*250
500*250
500*250
Module Weight (kg)
1.7
1.7
1.7 1.7 1.7
1.7
Module Thickness
20mm
20mm
22mm
22mm
23mm
25mm
Contrast Ratio
5,000:1
7,000:1
10,000:1
10,000:1 10,000:1
10,000:1
Drive Mode
Common Cathode Horizontal Viewing Angle (Deg)
160
Vertical Viewing Angle(Deg)
Upward viewing angle30°
Down viewing angle 60°Upward viewing angle20° Down viewing angle 50°
Brightness(cd/m²)
5,000-7,000
6,000-9,000
Grey Scale (bit)
14-16
Refresh Rate(Hz)
3,840
Max Power consumption (W/m²)
580W±3 %/ m² 540W±3 %/ m²
540W±3 %/ m²
550W±3 %/ m²
550W±3 %/ m²
550W±3 %/ m²
Average Power consumption (W/m²)
174W/m²
162W/m²
162W/m²
165W/m²
165W/m²
165W/m²
Cabinet Size (mm*mm)
1,000*500/1,000*750/1,000*1000
Cabinet Weight(Kg)
27kg/m²
Cabinet Thickness(mm)
81.5mm
81.5mm
83.5mm
83.5mm
84.5mm
86.5mm
Input Voltage(V)
AC100-240v
Norking Temperature(℃)
-40~+55℃
Storage temperature range(C)
-40~+60℃
Working humidity(RH)
10%~95%RH
Waterproof Leve
IP66
Working Environment
Outdoor
Maintenance type
Front/Rear
Certificates
CE(LVD、EMC),CB,FCC,ETL
