advanced Outdoor Fixed Display PT Sports 1600
Product category:
Key words:
advanced Outdoor Fixed Display
Cob LED Display

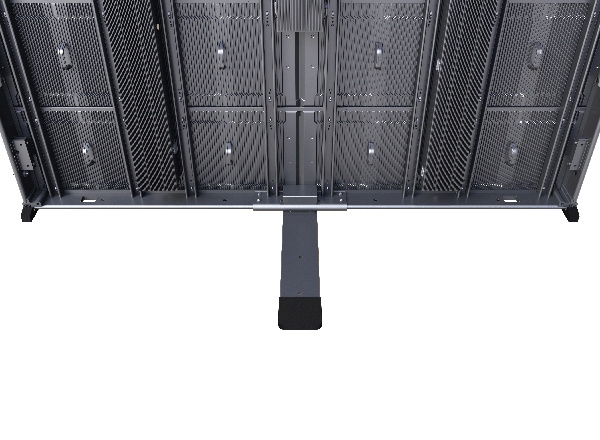

Platinum Sports 960 is our ultimate solution for stadiums and sports fields.It is designed with footstand and top safer bumper. advanced Outdoor Fixed Display The advanced Outdoor Fixed Display PT Sports 1600 is a remarkable technological marvel specifically designed for outdoor use.
Inquiry
- Product Description
- Parameters
-

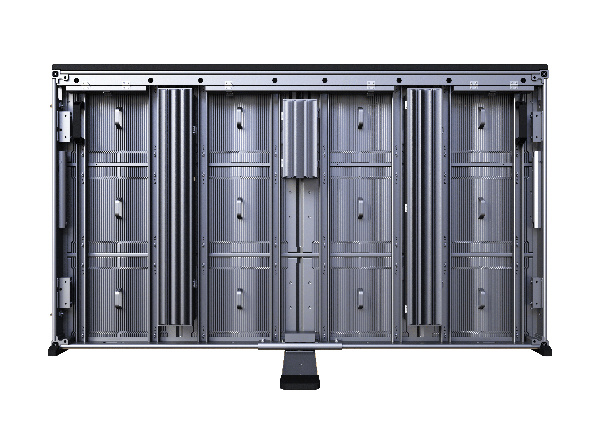

Standard Size
1600*900mm
light Weight
Weight: 45KG/m²

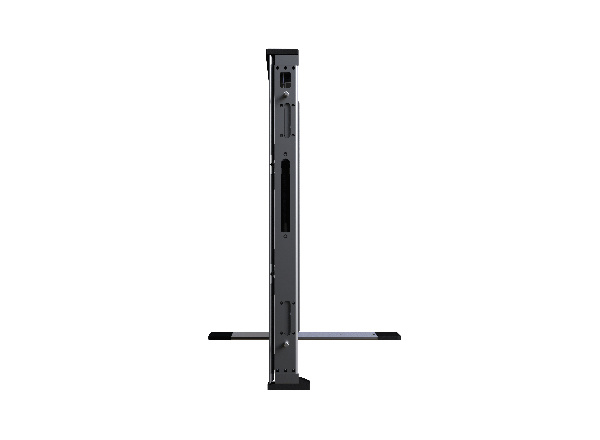

Thickness: 101mm
Power & Signal power inside
Stadium screen carts are convenient
● Cart:Pack 4 Panels,the size is 900*1600mm
● Cart:Twocarts can be stacked

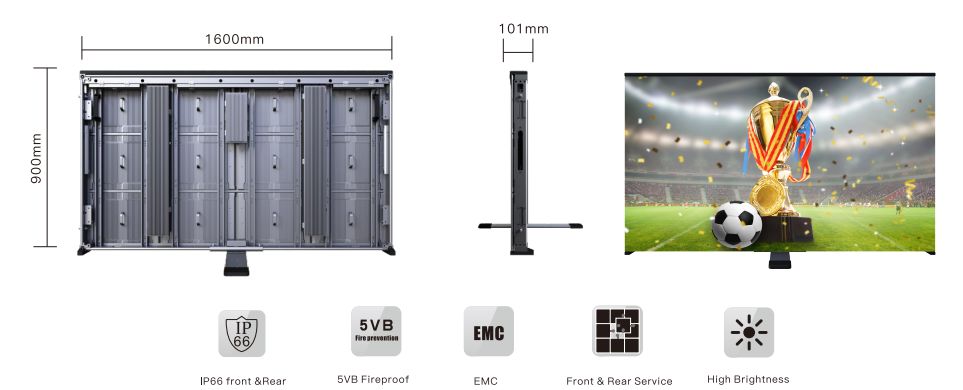

Product Size
advanced Outdoor Fixed Display

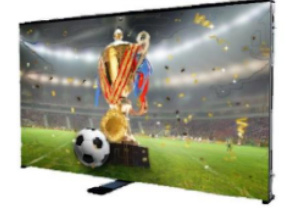

The advanced Outdoor Fixed Display PT Sports 1600 is a remarkable technological marvel specifically designed for outdoor use.
This display offers an exceptional visual experience. With its high resolution and excellent color reproduction, it brings sports events and other outdoor content to life with stunning clarity. The 1600 model ensures that every detail is sharp and distinct, allowing viewers to fully immerse themselves in the action.
Built to withstand the rigors of the outdoors, the PT Sports 1600 is engineered with durability in mind. It has a robust and weather-resistant construction that can handle various weather conditions, including rain, wind, and extreme temperatures. This guarantees reliable performance and long-term usage even in the harshest environments.
The display is also designed to provide optimal viewing from different distances and angles. Whether you're close up or far away, the images remain clear and visible, enhancing the overall viewing experience for a large audience. It offers wide viewing angles, ensuring that no one misses out on the excitement.
In addition to its visual capabilities, the PT Sports 1600 is equipped with advanced technologies for seamless operation. It may have features like intelligent brightness adjustment to adapt to different lighting conditions throughout the day, as well as efficient power management to conserve energy.
Moreover, its installation and maintenance are made easy, minimizing downtime and allowing for smooth operation. The display is designed to be easily integrated into existing outdoor setups, making it a practical choice for stadiums, arenas, and other outdoor sports and entertainment venues. Overall, the advanced Outdoor Fixed Display PT Sports 1600 is a cutting-edge solution that combines superior visual quality, durability, and functionality to create an unforgettable outdoor viewing experience.
-
Model name
PRP6.6
PRP8.3
PRP10
Pixel Pitch(mm)
6.6
8.3
10
Pixel Density (dot/□)
22500
14400
10000
LED sealing Type
SMD2727
SMD3535
SMD3535
Module Size(mm*mm)
400*300
400*300
400*300
Module Resolution(PX*PX)
60*45
48*36
40*30
Module Weight (kg)
1.5(kg)
1.5(kg)
1.5(kg)
Module Thicknees
18.5mm
19mm
20mm
Drive Mode
Constant Current
Constant Current
Constant Current
Horizontal Viewing Angle (Deg)
170
170
170
Vertical Viewing Angle(Deg)
110
110
110
Brightness(cd/m²)
6500-9500
6500-10000
6500-10000
Grey Scale(bit)
14bi
14bit
14bit
Refresh Rate(Hz)
3840
3840
3840
Maximum Cabinet Power Consumption (W)
630W/m
550W/m
550W/m
Average Cabinet Power Consumption(w)
250/m
200/m
200/m²
Cabinet Size(mm*mm)
1600*900mm
1600*900mm
1600*900mm
Cabinet Weight(Kg)
45KG/m
45KG/m
45KG/m
Cabinet Thickness(mm)
101
101
101
Input Voltage(V)
AC90-260V
AC90-260V
AC90-260V
Working Temperature(℃)
-20℃-60℃
-20℃-60℃
-20℃-60℃
Operating humidity(RH)
10%-90%
10%-90%
10%-90%
Waterproof Level Front &Rear
IP68/IP66
P68/IP66
IP68/IP66
Working Environment
outdoo
putdooI
putdoor
Instaltion Method
Full front&rear service
Full front&rear service
Full front&rear service
Certificate
CE(LVD、EMC),ETL,CB
CE(LVD、EMC),ETL,CB
CE(LVD、EMC),ETL,CB
