1. Product description
With the development of the times, LED indoor soft modules can no longer meet the current people's requirements for the perfect combination of modeling and practical effects. However, the emergence of outdoor soft modules gets rid of the pain points of traditional soft modules that are only installed in indoor environments without waterproof function, and the waterproof process before and after outdoor soft modules can meet the conditions of indoor/outdoor environments at the same time, and has soft and bendable performance, which is incomparable to the waterproof advantages and high-brightness display effect of traditional indoor soft modules. The module can be assembled: inner arc display surface, outer arc display surface, corner screen display surface. It can meet different outdoor shapes and is widely used in: outdoor central squares, exhibition venues, high-end shopping malls, airports, stations and other public places and many other media release and display places and other wide range of applications. Let the outdoor display be more than flat;

2.Main process characteristics
- Standardized size design of 320x160mm, low current, low heat, high contrast and high refresh;
- The bottom case is equipped with 16 magnets, the magnetic content of a single magnet is 2500 GS, which makes the adhesion between the module and the case stronger, the magnets resist salt spray and corrosion for 48 hours, and the height of the magnets can be adjusted, which effectively improves the flatness of the screen body and the use of the effect;
- It supports front mounting/maintenance design, and the front and rear waterproof process meets the requirement of IP65 waterproof grade;
- The lamp face of the module has a protective cover to protect the lamp beads, anti-reflection and anti-solid dust;
- The back cover of the base case adopts honeycomb design pattern with great visual aesthetics, and the back cover of the base case is detachable, which is convenient for maintenance and better protects the components at the back of the module from being damaged easily and prevents the module from getting into water;

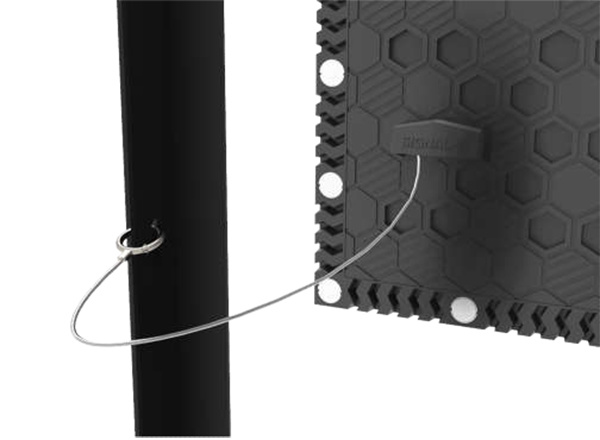

- The combination of anti-drop safety rope and reinforced magnet adds another layer of safety to prevent the module from dropping due to high wind or high altitude installation;

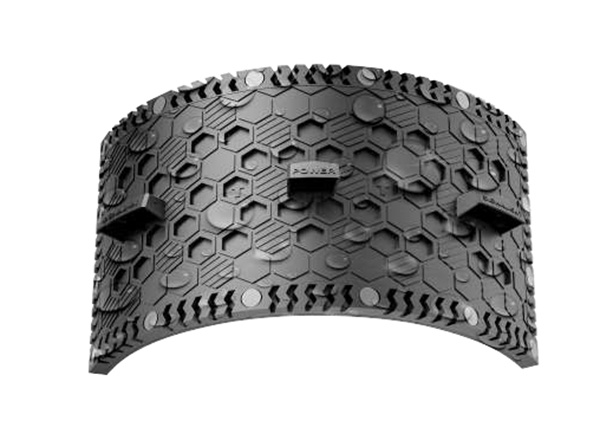

- The PCB board adopts flexible soft board, and the bottom case adopts silicone material, which has good flexibility and prevents static electricity;

3. Bending arc of outdoor soft module:

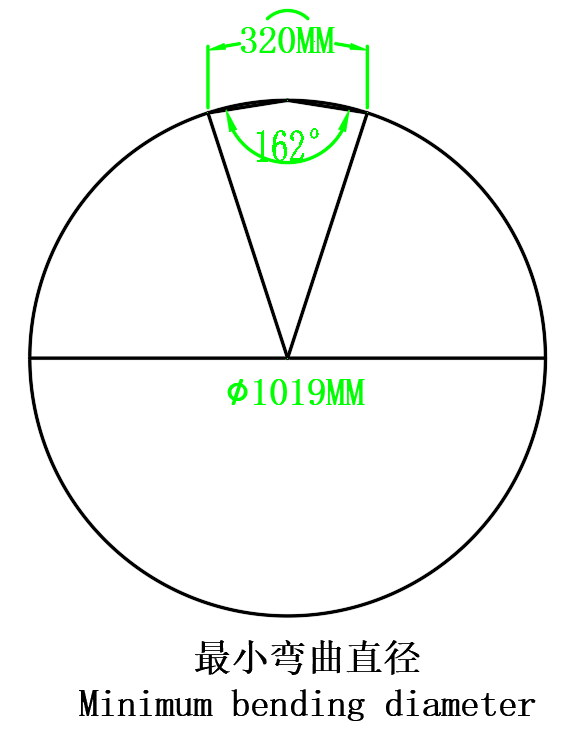

• The inner arc and outer arc are composed of 10 modules, and the minimum cylinder diameter ≥ 1019mm

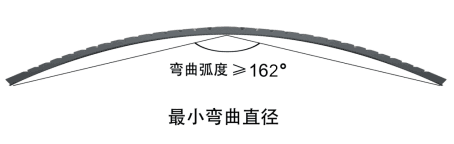

• Schematic diagram of the bending arc of the module: the inner arc and the outer arc can be bent ≥ 162 °

4. Installation

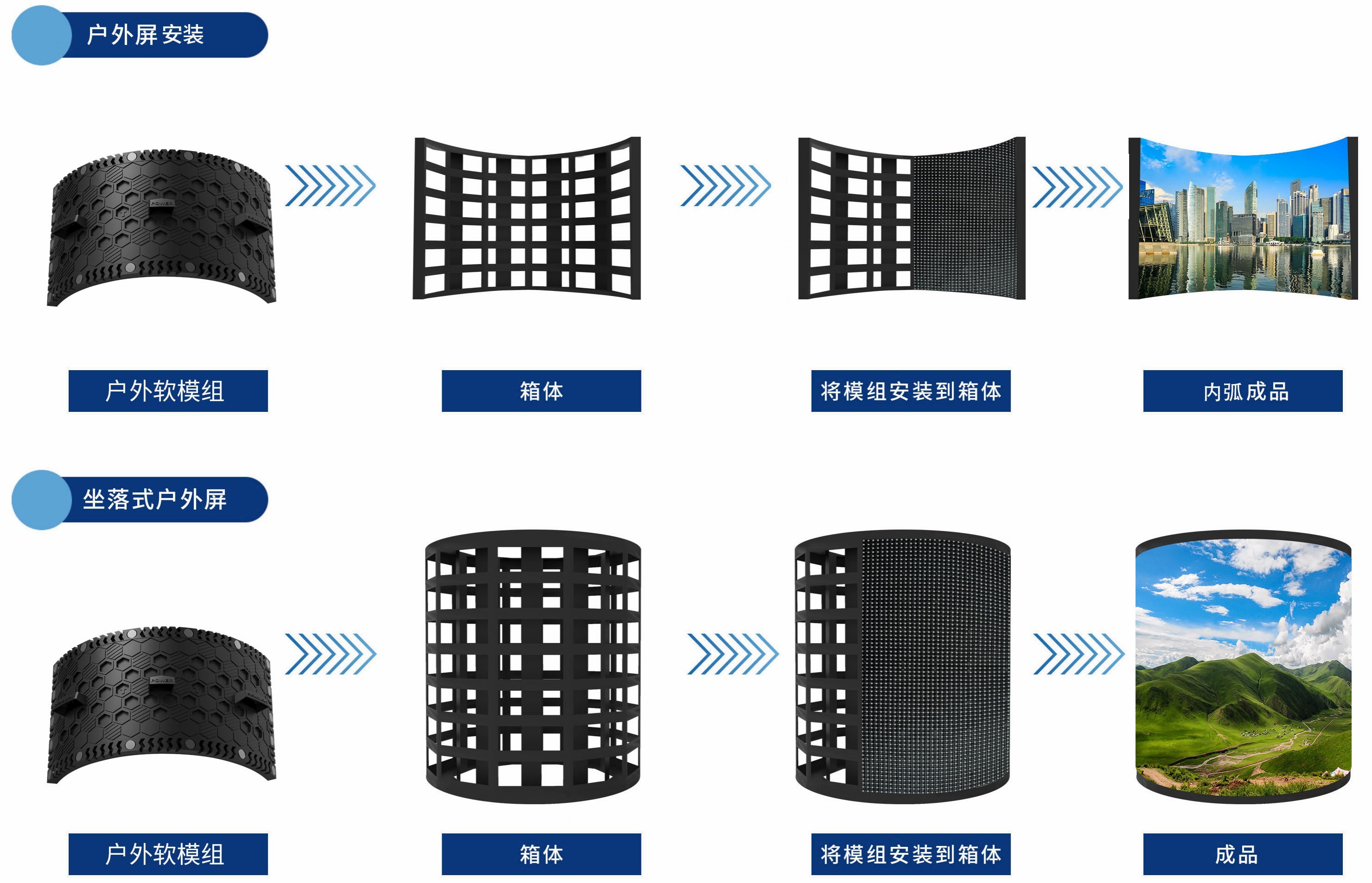

4.1 Installation diagram

4.2 Precautions for installation details

• Operators must wear anti-static gloves when assembling the module.
• The screen or module is not allowed to hit and splash water, such as cleaning the dust should not be cleaned with chemical components or hard objects, and can be cleaned with anti-static soft brush and water.

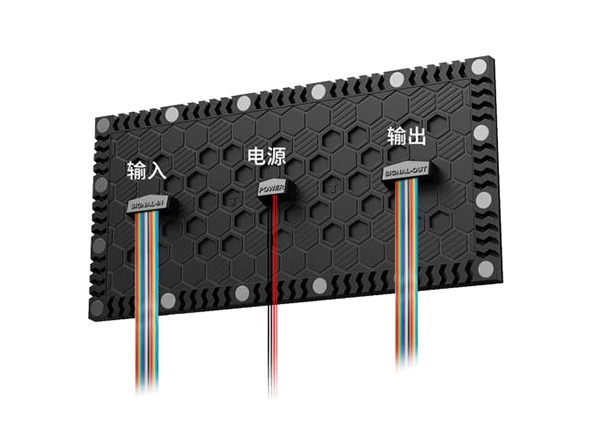

• It is forbidden to tear and pull directly violently, and gently pull and plug when pulling out the wire, so as to avoid excessive force to pull out the copper pillar and damage the PCB.
• After disassembling the back cover for maintenance, pay attention to the fact that the back cover must be pressed tightly when returning to the back cover to prevent water ingress during use.
• It is recommended to do sheet metal box spraying process installation. If the galvanized square pipe is installed, the flatness of the galvanized square pipe cannot be guaranteed.

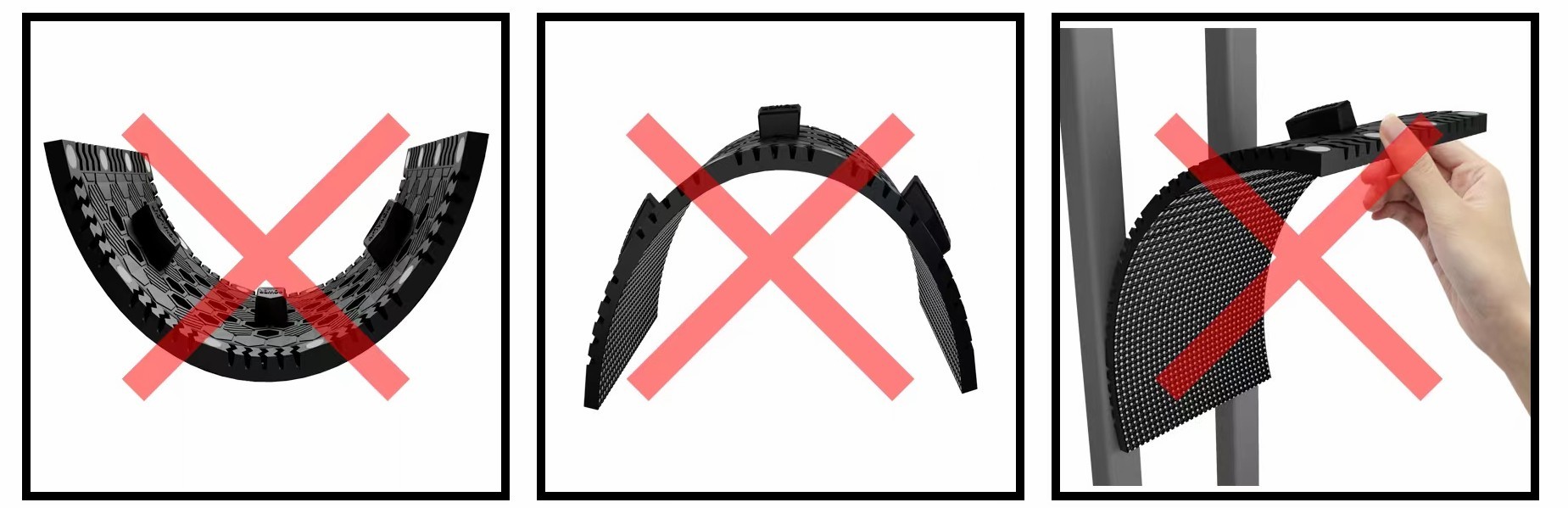

• The bending angle of the module is between 162°~180°, and it is forbidden to bend the module violently and repeatedly.
*Product failure or damage caused by failure to comply with the relevant precautions in the installation details manual, or human factors, are not covered by the manufacturer's warranty. Please take good care of the attached materials and attachments, if you have any questions, please contact us.

5. Module cabinet accessories

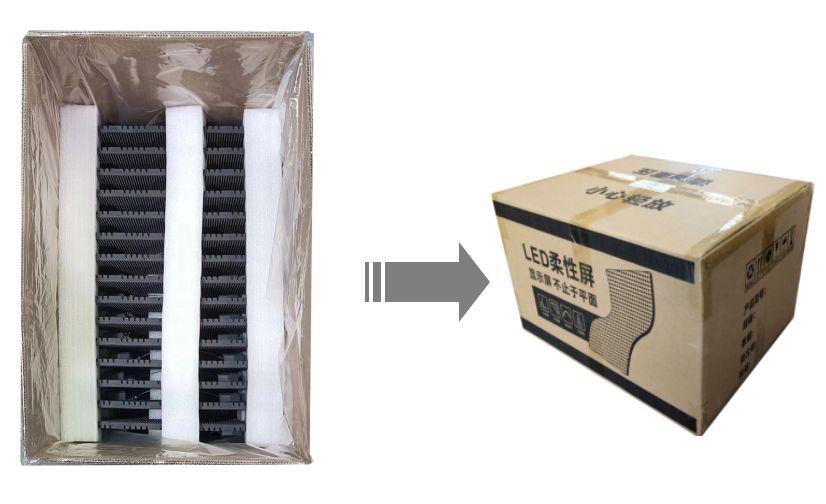

6. Packing
