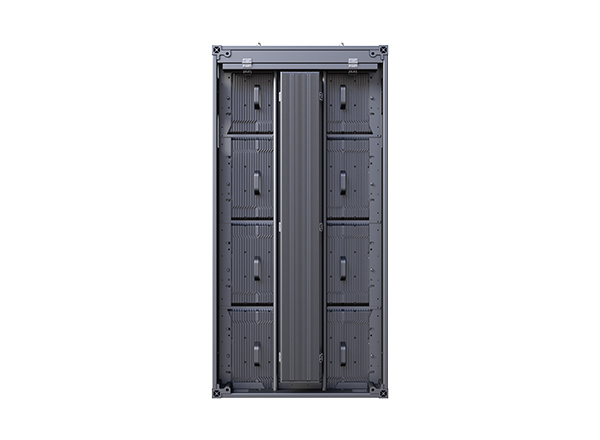

customized Outdoor Fixed Display PTS
Product category:
Key words:
Cob LED Display
● Die-casting Aluminum module and cabinet,for seamless installation and fast heat radiation. ● Both totally front and rear service,easy for installation. ● Simple design with hidden cables. The customized Outdoor Fixed Display PTS is a remarkable solution tailored to meet specific outdoor display needs. This display stands out for its adaptability and unique design. It is crafted to blend seamlessly into any outdoor environment, whether it's a busy cityscape, a sports arena, or a serene park. The customizable aspect allows for a perfect match with the surrounding aesthetics, ensuring it doesn't look out of place.
Inquiry
- Product Description
- Parameters
-

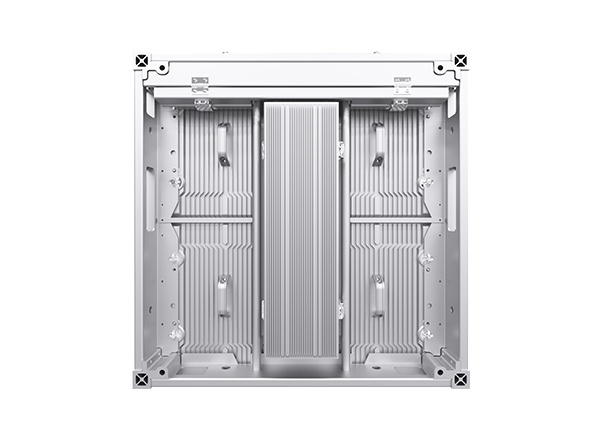

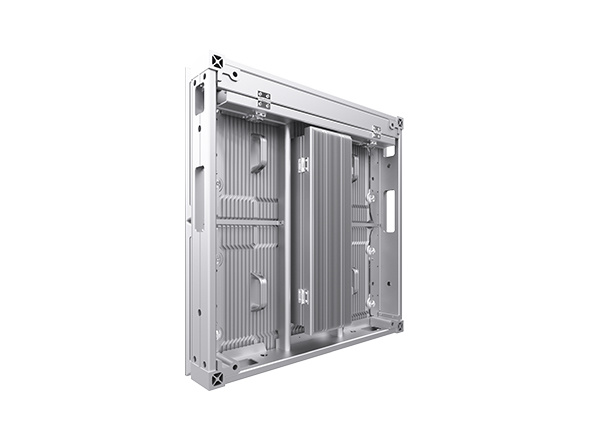

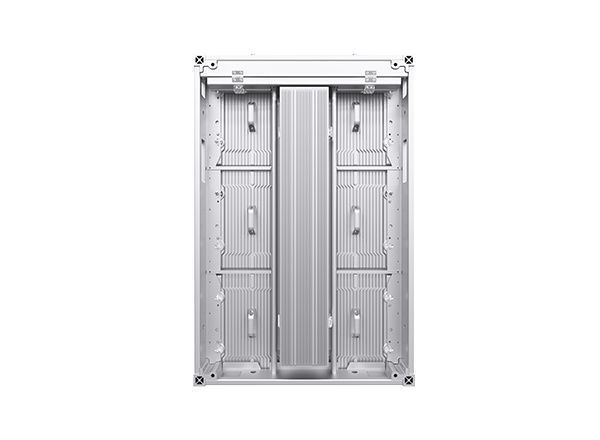

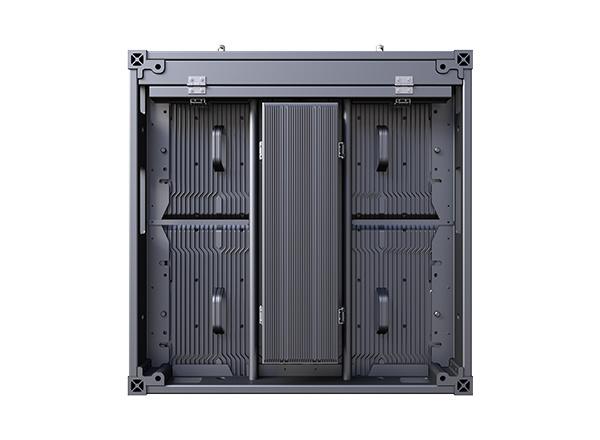

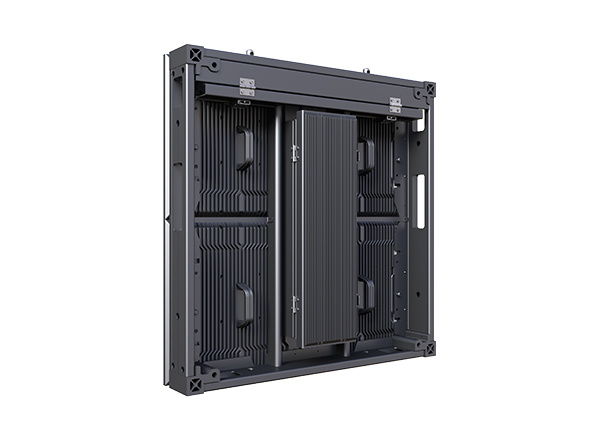

Superior structural design
● Die-casting Aluminum module and cabinet,for seamless installation and fast heat radiation.

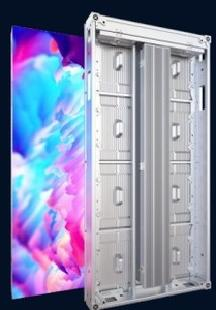

● Both totally front and rear service,easy for installation.
● Simple design with hidden cables.

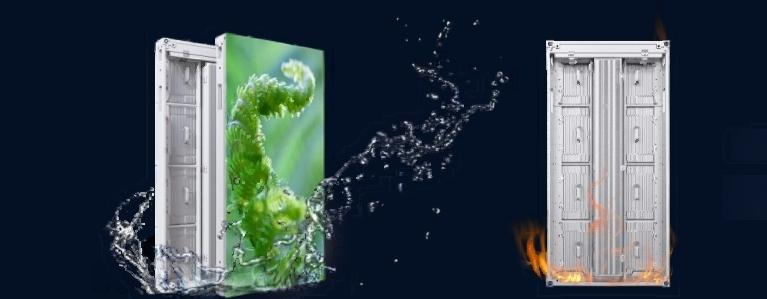

Ultra high protection
Fearless in outdoor environments
● Waterproof up to lp66

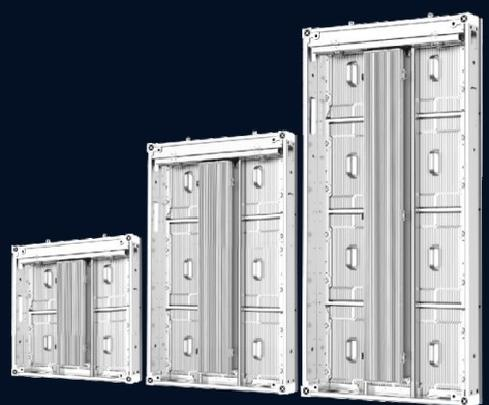

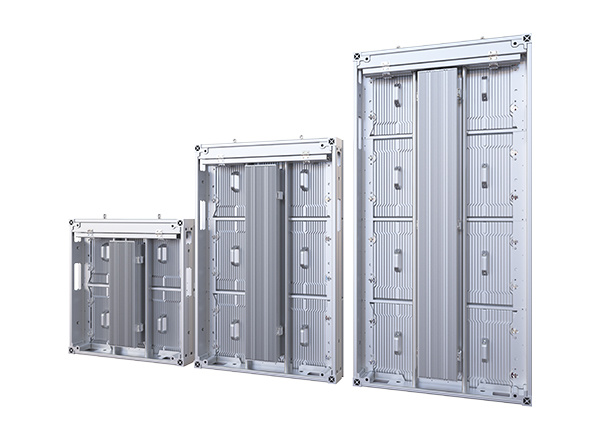

● Fire rating up to 5VBFlexible Size
● 500mm*1000mm
● 500mm*750mm
● 500mm*500mmLightWeight
Weight:38KG/m²
Thicknees:81mm
Perfect rounded corners
PTS+VR
Perfect seamless corner cabinet for naked-eye 3D solution.
customized Outdoor Fixed Display
The customized Outdoor Fixed Display PTS is a remarkable solution tailored to meet specific outdoor display needs.
This display stands out for its adaptability and unique design. It is crafted to blend seamlessly into any outdoor environment, whether it's a busy cityscape, a sports arena, or a serene park. The customizable aspect allows for a perfect match with the surrounding aesthetics, ensuring it doesn't look out of place.
The screen of the PTS offers an exceptional viewing experience. It showcases vivid colors and sharp details, bringing content to life with an astonishing level of clarity. The display is engineered to be highly visible even in direct sunlight, ensuring that the information or visuals are easily discernible.
In terms of durability, the PTS is built to last. It can withstand various weather conditions, including rain, snow, heat, and cold. Its robust construction and weather-resistant materials guarantee reliable performance for a long time, minimizing the need for frequent maintenance or replacements.
Moreover, the PTS can be configured to meet different technical requirements. It may offer features such as high resolution, wide viewing angles, and advanced connectivity options. This allows for seamless integration with different content sources and control systems, providing flexibility in operation.
Installation of the customized Outdoor Fixed Display PTS is also made straightforward. It can be securely mounted in different locations, and its design takes into account ease of access for servicing and upgrades.
Overall, the customized Outdoor Fixed Display PTS is a fantastic option for those seeking a unique and reliable outdoor display solution. Its ability to be personalized, combined with its excellent visual and durability features, makes it a standout choice for a wide range of applications.
-
Model name
PTS2.9
PTS2.9
PTS3.9
PTS3.9
PTS4.8
PTS6.2
Pixel Pitch (mm)
2.9
2.9
3.9
3.9
4.8
6.2
Pixel Density (dot/m²)
112,896
112,896
65,536
65,536
43,264
25,600
LED sealing Type
SMD1515
(white led)
SMD1515
(black led)
SMD1515
(white led)
SMD1921
(white led)
SMD1921
(white led)
SMD2727
(white led)
Module Resolution(PX*PX)
84*84
84*84
128*64
128*64
104*52
80*40
Module Size(mm*mm)
250*250
250*250
500*250
500*250
500*250
500*250
Module Weight (kg)
1.02
1.02
1.85
1.85
1.85
1.85
Module Thickness
21mm
21mm 21mm 21mm
21mm
24mm
Contrast Ratio
4,000:1
10,000:1
8,000:1
5,000:1
7,000:1
10,000:1
Drive Mode
Common Cathode Horizontal Viewing Angle (Deg)
160
Vertical Viewing Angle(Deg)
Upward 30° Down 60°
Upward 30°
Down 60°Upward 30° Down 60°
Brightness(cd/m²)
4,500-5,000
2,500-3,000
4,000-5,500
5,000-7,000
6,000-9,000
Grey Scale (bit)
14-16
Refresh Rate(Hz)
3,840
Max Power consumption (W/m²)
670W±3%/m²
500W±3%/m²
570W±3%m²
570W±3%/m²
540W±±3%m²
550W±±3%m² Average Power consumption (W/m²)
201W/m²
150W/m²
171W/m²
171W/m²
162W/m²
165W/m²
Cabinet Size (mm*mm)
500*500/500*750/500*1000
Cabinet Weight(Kg)
38kg/m²
36.5kg/m²
Cabinet Thickness(mm)
81mm
84mm
Input Voltage(V)
AC100-240y
Norking Temperature(℃)
-40~+55℃
Storage temperature range(C)
-40~+60℃
Working humidity(RH)
10%~95%RH
Waterproof Leve
IP66
Working Environment
Outdoor
Maintenance type
Front/Rear
Certificates
CE(LVD、EMC),CB,FCC,ETL
