customized Outdoor Fixed Display PT PRO
Product category:
Key words:
Platinum pro modules designed with fast lock, it is easy to lock and unlock by a simple tool from both front or back. customized Outdoor Fixed Display：Customized Outdoor Fixed Displays have become an integral part of our visual landscape.
Inquiry
- Product Description
- Parameters
-

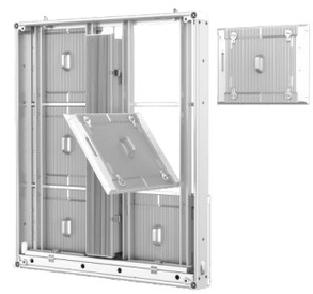

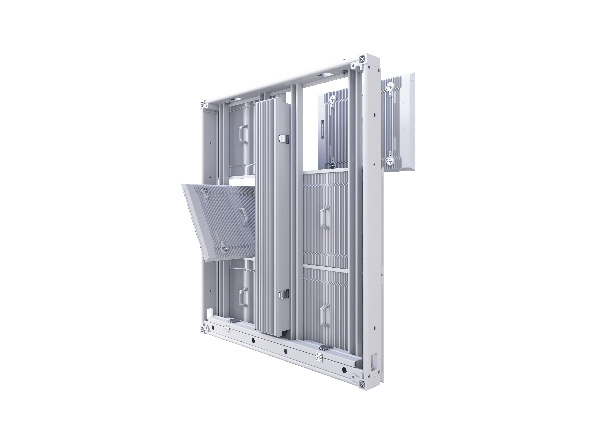

Fast Front and Back maintenance
Platinum pro modules designed with fast lock,it is easy to lock and unlock by a simple tool from both front or back.
Heat Dissipation
● Aluminum module chassis and panel frame accelerates heat dissipation.
● Heat sink design for module chassis and power supply unit improves heat dissipation Considerably,
● White color frame can reflect the sunlight to reduce the heat generated in the panel.

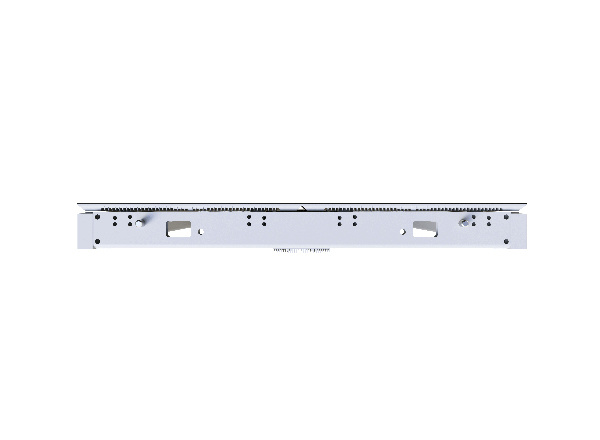

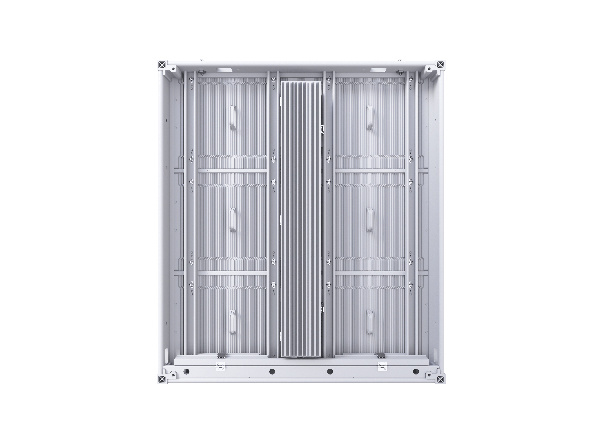

Cable free back side
All cables are hidden at the bottom of the cabinet,which makes the clean look and prevent disconnecting by accidents.
Protection grade IP66(Front & Rear) and Fanless cooling system
● The total cabinet is IP66 front and rear, tested by TUV.
● It will avoid any water entry from the outside. And the fanless cooling system will isolate dust and dirt
● and extend the lifespan of the electronic components inside.

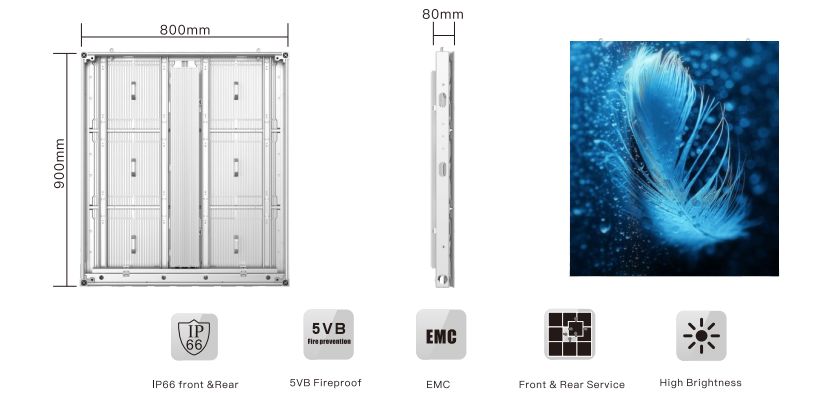

Product Size
customized Outdoor Fixed Display：Customized Outdoor Fixed Displays have become an integral part of our visual landscape. These displays are specifically designed to meet the unique needs of different outdoor environments. In busy city centers, they act as large-scale advertising platforms, showcasing vivid and engaging content to a large audience. They can be found in public squares, where they display important announcements, events, and information. At sports stadiums, they provide real-time game information and enhance the spectator experience. In shopping malls and commercial areas, they attract customers with eye-catching advertisements and promotions. These displays are also used in tourist attractions to provide orientation and information. Their durability and weather resistance ensure they can withstand the elements. The ability to customize allows for seamless integration into the surrounding architecture and aesthetics. With advanced technology, they offer high-quality visuals and clear messaging, making them a powerful tool for communication and visual impact in the outdoor realm.
-
Modelname
P6.6
P8.3
P10
Pixel Pitch(mm)
6.67
8.33
10
Pixel Density (dot/m²)
22500
14400
10000
LED sealing Type
SMD2727
SMD3535
SMD3535
Module Size(mm*mm)
400*300
400*300
400*300
Module Resolution(PX*PX)
60*45
48*36
40*30
Module Weight(kg)
1.5(kg)
1.5(kg)
1.5(kg)
Module Thicknees
18.5mm
19mm
20mm
Drive Mode
Constant Current
Constant Current
Constant Current
Horizontal Viewing Angle(Deg)
170
170
170
Vertical Viewing Angle (Deg)
110
110
110
Brightness (cd/m)
6000-9000
6000-10000
6000-10000
Grey Scale(bit)
4bi
14bit
14bi
Refresh Rate(Hz)
3840
3840
3840
Maximum Cabinet Power Consumption (W)
580W/m
550W/m
550W/m
Average Cabinet Power Consumption (W)
250/m
200/m
200/m
Cabinet Size(mm*mm)
300*1200
200*1200
1600*900800*900
800*1200
1200*1200
1600*900800*900
300*1200
200*1200
1600*900800*900
Cabinet Weight (Kg)
25kg/m(800*1200)
25kg/m(800*1200)
25kg/m(800*1200)
Cabinet Thickness(mm)
80
80
80
Input Voltage(V)
AC90-260V
AC90-260V
AC90-260V
Working Temperature(℃)
-20℃-60℃
-20℃-60℃
-20℃-60℃
Operating humidity(RH)
10%-90%
10%-90%
10%-90%
Waterproof Level Front &Rear
IP68/IP66
IP68/IP66
IP68/IP66
Working Environment
outdoo
outdoor
outdoor
Installtion Method
Full front&rear service
Full front&rear service
Full front&rear service
Certificate
CE(LVD、EMC),ETL,CB
CE(LVD、EMC),ETL,CB
CE(LVD、EMC),ETL,CB
