new Outdoor Fixed Display PTA
Product category:
Key words:
Cob LED Display
● Aluminum module chassis and panel frame accelerates heat dissipation. ● Heat sink design for module chassis and power supply unit improves heat dissipation considerably ● 5VB Fireproof The new Outdoor Fixed Display PTA is an outstanding innovation in the world of outdoor display technology. This display is a true masterpiece, crafted with precision and engineered to deliver an unparalleled visual experience. It features a large and vibrant screen that showcases sharp images and vivid colors, making everything from advertisements to live events come alive with remarkable clarity.
Inquiry
- Product Description
- Parameters
-
Fast heat dissipation
● Aluminum module chassis and panel frame accelerates heat dissipation.
● Heat sink design for module chassis and power supply unit improves heat dissipation considerably
● 5VB Fireproof
IP66 front and rear
Both Front and Rear service
Module and back PSU can be moved out from the front totally.

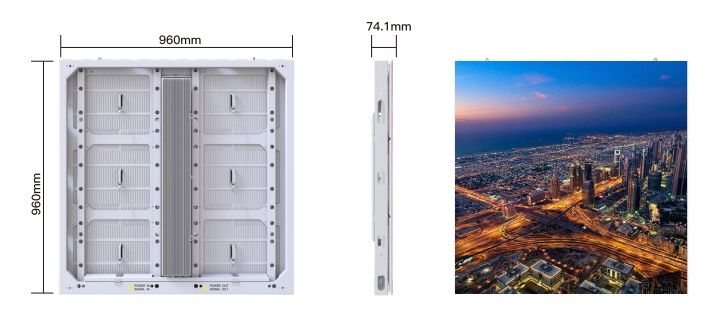

Product Size
The new Outdoor Fixed Display PTA is an outstanding innovation in the world of outdoor display technology.
This display is a true masterpiece, crafted with precision and engineered to deliver an unparalleled visual experience. It features a large and vibrant screen that showcases sharp images and vivid colors, making everything from advertisements to live events come alive with remarkable clarity.
Designed specifically for outdoor use, the PTA is built to endure the harshest elements. It has a rugged and durable construction that can withstand rain, wind, sunlight, and temperature fluctuations. This ensures that it remains reliable and functional in any outdoor environment, providing continuous and uninterrupted viewing.
The viewing angles of the PTA are wide, allowing a large audience to enjoy the content from different positions without any significant loss of quality. It also offers high brightness levels, ensuring that the display remains visible and legible even in bright daylight.
Installation of the new Outdoor Fixed Display PTA is a seamless process, and it can be easily integrated into various outdoor settings. Whether it's a sports stadium, a city square, or a commercial complex, the PTA adds a touch of modernity and visual appeal.
Furthermore, the PTA is equipped with advanced technologies to ensure smooth operation and easy content management. It can be connected to different sources, enabling the display of a wide range of content, such as videos, graphics, and real-time information.
In summary, the new Outdoor Fixed Display PTA is a game-changer in the outdoor display market. With its outstanding features, durability, and visual excellence, it is set to transform the way we experience outdoor visual content.
-
Item Number
PTA6.6
PTA8
PTA10
Pixel Pitch
6.67
10
Pixel Density
22500
15625
10000
LFD Arrangemen
SMD2727
SMD3535
SMD3535
Module Resolution
72*48
60*40
48*32
Module Dimension
480*320
480*320
480*320
Module Weight
1.98KG
1.98KG
1.98KG
odule Thicknes
20.1mm
20.1mm
20.1mm
Grey Scale (bit)
14-16bit
14-16bit
14-16bit
Brightness Level
5500-6500nits
5500-6500nits
5500-6500nits
Cabinet Size
960*1280
960*960 1440*960
960*647 1440*641
960*1280
960*960 1440*960
960*640 1440*64
960*1280
960*960 1440*960
960*640 1440*640
Cabinet Weight(Kg)
28KG/m²
28KG/m²
28KG/m²
Cabinet Thickness(mm)
74.3mm 74.3mm
74.3mm
Max Power Consumption/m²
<680
<680
<680
Ave Power Consumptionm²
<205
<205
<205
Visual View Angle
180°/80°
180°/90°
80°/90°
Input Voltage(V)
AC110~220V
AC110~220V
AC110~220V
Working Temperature (℃）
-30~55℃
-30~55℃
-30~55℃
Refresh Rate
3840Hz
3840Hz
3840Hz
Protecting Rating
IP66
P66
IP66
