quality Outdoor Fixed Display PT
Product category:
Key words:
Cob LED Display
● Dia-casting Aluminum module and power box for fast heat dissipation. ● Selected high quality materials for long life span. ● Advanced technology and strict quality control. The quality Outdoor Fixed Display PT is truly a remarkable piece of technology. This display is designed with the highest standards of quality in mind. The materials used in its construction are of the finest grade, ensuring durability and long-lasting performance even in the harshest outdoor conditions. The frame is sturdy and stable, capable of withstanding strong winds and other environmental challenges.
Inquiry
- Product Description
- Parameters
-
High Stability

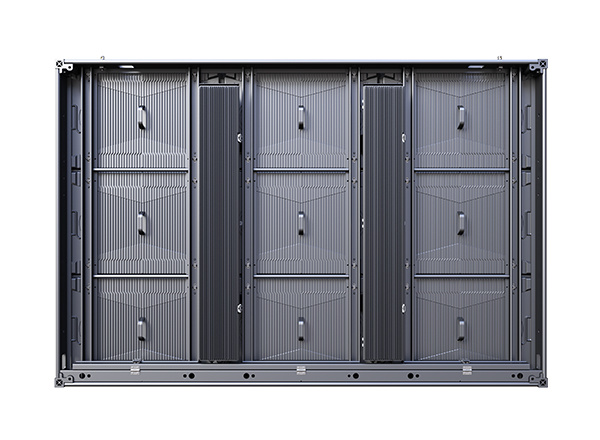

● Dia-casting Aluminum module and power box for fast heat dissipation.
● Selected high quality materials for long life span.
● Advanced technology and strict quality control.
High energy efficiency

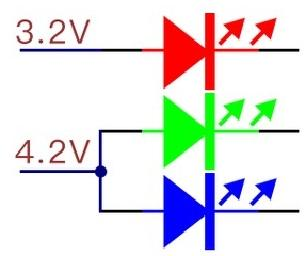

Creates the PCB design and Power supply with seperate voltage;the positive pole of Red LED chip is 3.2V;
Green and Blue is 4.2V.It helps saving 30%power consumption at least,compared with the tranditional 5V for Red,Green and Blue LEDs.

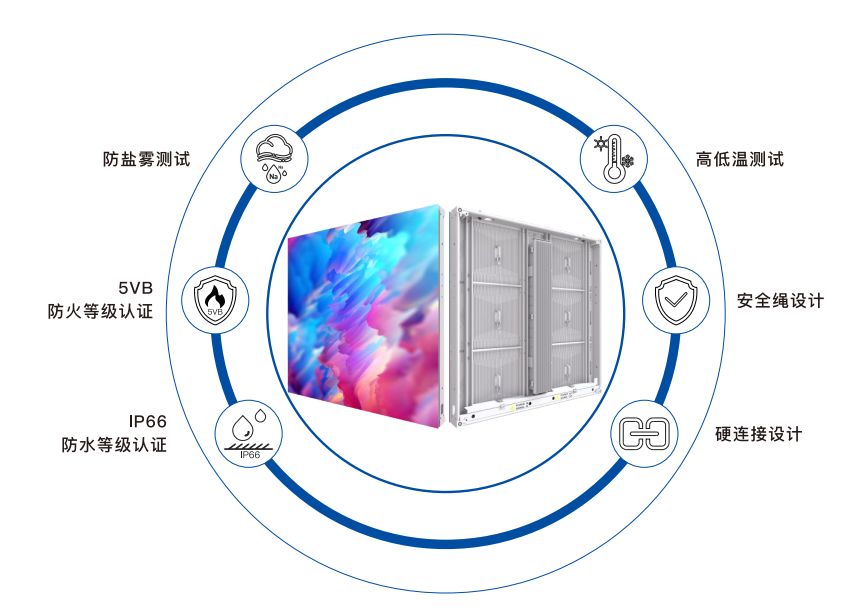

High safety

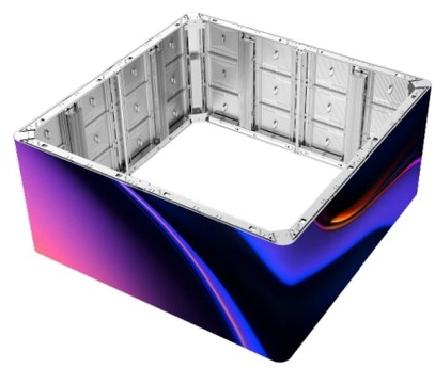

Perfect curve
Perfect seamless corner cabinet for naked-eye 3D solution.

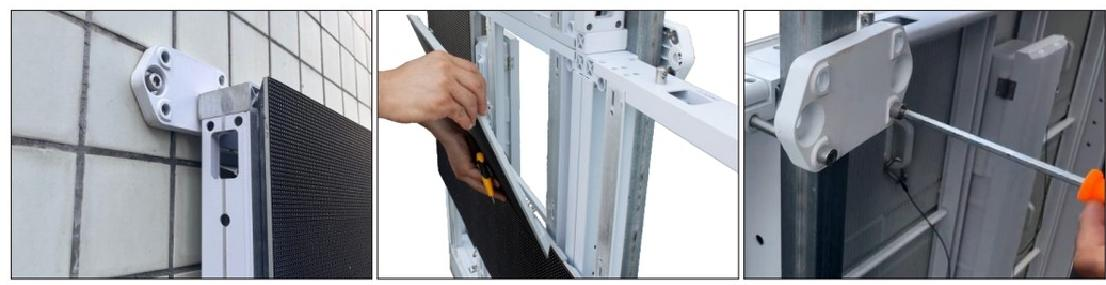

Installation method
The quality Outdoor Fixed Display PT is truly a remarkable piece of technology.
This display is designed with the highest standards of quality in mind. The materials used in its construction are of the finest grade, ensuring durability and long-lasting performance even in the harshest outdoor conditions. The frame is sturdy and stable, capable of withstanding strong winds and other environmental challenges.
The screen of the PT offers an outstanding visual experience. It presents images and videos with remarkable clarity, sharpness, and color accuracy. The contrast ratio is optimized to make every detail stand out, whether it's during the day or in low light conditions. The viewing angles are wide, allowing a large audience to enjoy the content without any significant distortion.
The PT also features advanced display technologies that enhance the quality further. It may have high refresh rates for smooth motion and anti-glare coatings to reduce reflections and ensure clear viewing. Additionally, it is designed to consume power efficiently, making it an environmentally friendly option.
In terms of functionality, the Outdoor Fixed Display PT is highly versatile. It can be easily integrated with various input sources and control systems, enabling seamless playback of different types of content. It can be used for advertising, information dissemination, live events, and more.
Installation and maintenance of the PT are straightforward. It comes with comprehensive installation instructions and is engineered for easy access for any necessary servicing or upgrades.
Overall, the quality Outdoor Fixed Display PT is a top-notch solution that combines durability, excellent visual performance, and functionality. It is a reliable choice for any outdoor display application, delivering a superior viewing experience to audiences.
-
Item Number
PT5.7 PT6.67 PT8 PT10 Pixel Pitch(mm)
5.7
6.67
8
10
Pixel Density(dots/SQM)
30,625
22,500
15,625
10,000
LED type
SMD2727
SMD2727
SMD3535
SMD3535
Module Resolution(pixels)
84*56
72*48
60*40
48*32
Module size(mm)
480*320
480*320
480*320
480*320
Cabinet size(mm)
960*640960*960960*12801440*960 1440*640
Cabinet weight(KG/m²)
30
30
30
Brightness(Nits)
6,000-9,000
6,000-10,000
6,000-10,000
6,000-10,000
Refreshment(Hz)
3,840
3,84C
3,84C
3.840
Grey Scale(Bit)
14-16
14-16
14-16
14-16
Max power
consumption(W)580W±3%/m²
580W±3%/m²
550W±3%/m²
550W±3%/m²
Ave Power consumption(W)
174W/m²
174W/m²
165W/m
165W/m
Maintenance type
Front/Rear
Front/Rear
Front/Rear
Front/Rea
Protecting level
IP66/IP66
IP66/IP66
IP66/IP66
IP66/IP66
Certificate
CE、FCC、ETL、EMC、CB、ROHS
CE、FCC、ETL、EMC、CB、ROHS
CE、FCC、ETL、EMC、CB、ROHS
CE、FCC、ETL、EMC、CB、ROHS
